Box IPC

Series for wall mounting in control cabinets

The Box series IPC from KEB is designed for wall-mounting in control cabinets. Each version has a range of processor sand data carriers available, as well as a selection of optional interfaces. A local or decentralized C6 monitor can be connected via standard DVI connection up to 100 m away for display and visualization.

The C6 Box IPC with integral C6 monitor can be used to control machine processes and motion sequences, as well as visualization, data acquisition, and image processing. Optional remote maintenance software can be integrated to create a complete system for operation and maintenance.

All KEB IPCs are equipped with an integrated micro UPS to ensure all data is saved in the event of a sudden power failure.

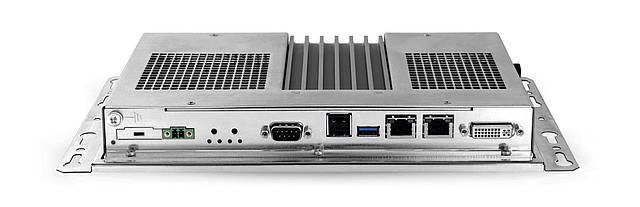

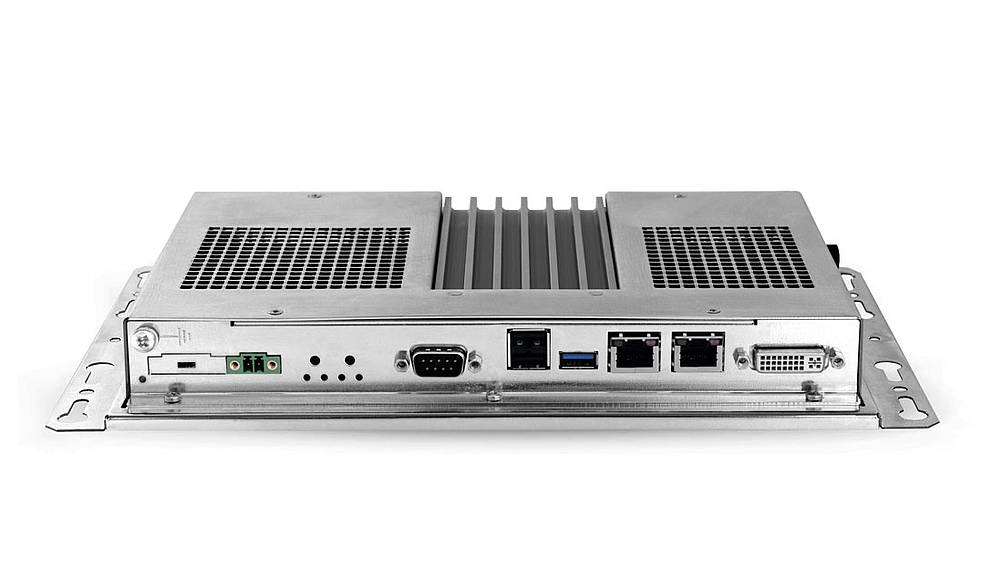

C6 E22 Box

High performance fanless Box IPC

The high-performance fanless C6 E22 Box IPC offers all the functionality of the Intel® Bay Trail™ platform with quad-core processor at an excellent price point. The E22 is the Box IPC of choice for applications that demand top-of-the-line performance in motion control.

When combined with a C6 monitor, decentralized visualization projects can be carried out quickly and easily. The all-in-one motherboard includes Ethernet, serial RS232, and USB interfaces as well as an EtherCAT master. Additional optional interfaces such as Profinet and Ethernet/IP enable connection to higher ranking controls.

The number of available interfaces depends on the installation space and location.

C6 E22 Box (extract from catalogue) (2 MB)

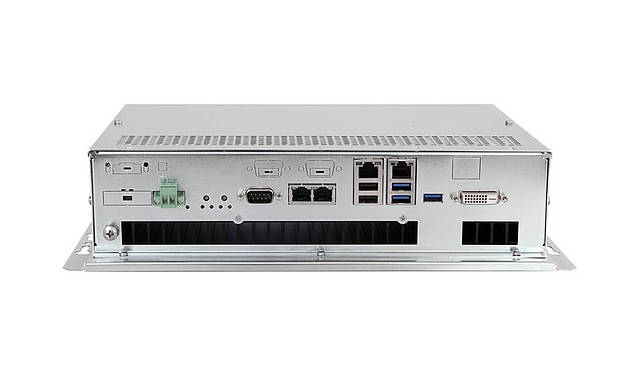

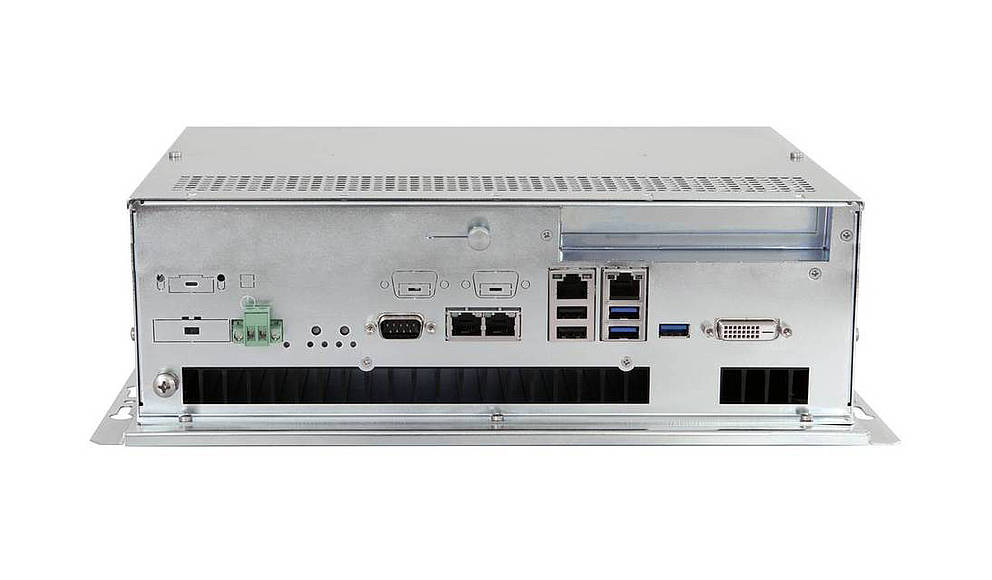

C6 P34 Box

Maximum performance Box IPC

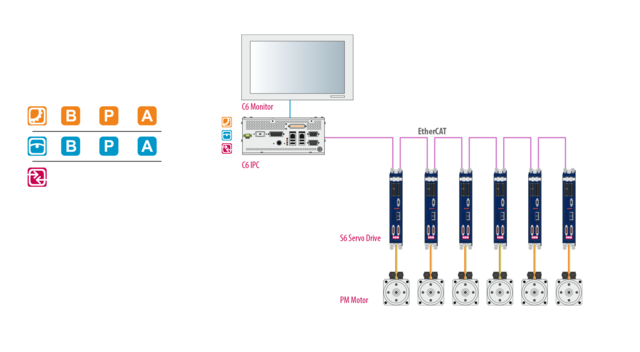

The C6 P34 Box IPC from KEB uses the Intel® Ivy Bridge platform along with the 6th generation Core i5 processors. It’s the most powerful Box IPC in our current line of automation products, with an impressive maximum computing capacity for motion control. When combined with a C6 monitor, decentralized visualization projects can be carried out quickly and easily.

The all-in-one motherboard includes Ethernet, serial RS232, and USB interfaces, as well as an EtherCAT master. Additional optional fieldbus interfaces enable connection to higher ranking controls and can be configured based on installation space and location.

All of KEB’s Panel IPCs are available in a wide range of display formats and sizes, and users can select either resistive or capacitive touch technology.
