KEB IPC Panels boast impressive operating capabilities for all applications

KEB’s series of IPC panels are becoming an important part of the automation technology landscape due to their flexibility and scalability.

Versatile IPC panels from KEB are available in a range of sizes, formats, resolutions, and touch technologies. Users can also choose from a list of processors, data carriers, and optional interfaces.

Together with pre-installed runtime libraries, IPC panels are being used for machine control and motion sequence processes as well as display, data acquisition, and image processing. All KEB IPCs are equipped with an integrated micro UPS to ensure all data is saved in the event of a sudden power failure.

Remote maintenance software is available as an option, making the IPC panel a cost-effective, complete operation and maintenance tool.


C6 E22 Panel

High performance fanless IPC Panel

The high-performance fanless C6 E22 IPC offers all of the functionalities of the Intel® Bay Trail™ platform with quad-core processor at an excellent price point. In applications with a high demand for display and visualization the E22 is the panel of choice.

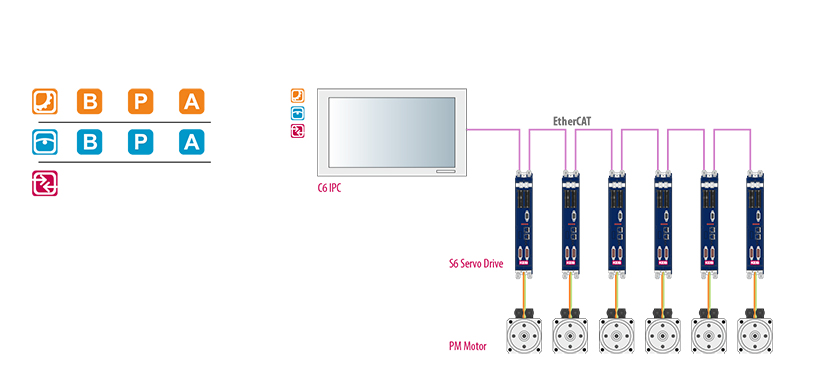

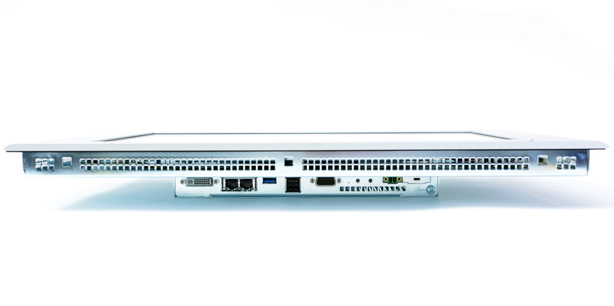

The all-in-one motherboard includes Ethernet, serial RS232, and USB interfaces, as well as an EtherCAT master. Additional optional fieldbus interfaces enable connection to higher ranking controls and can be configured based on installation space and location.

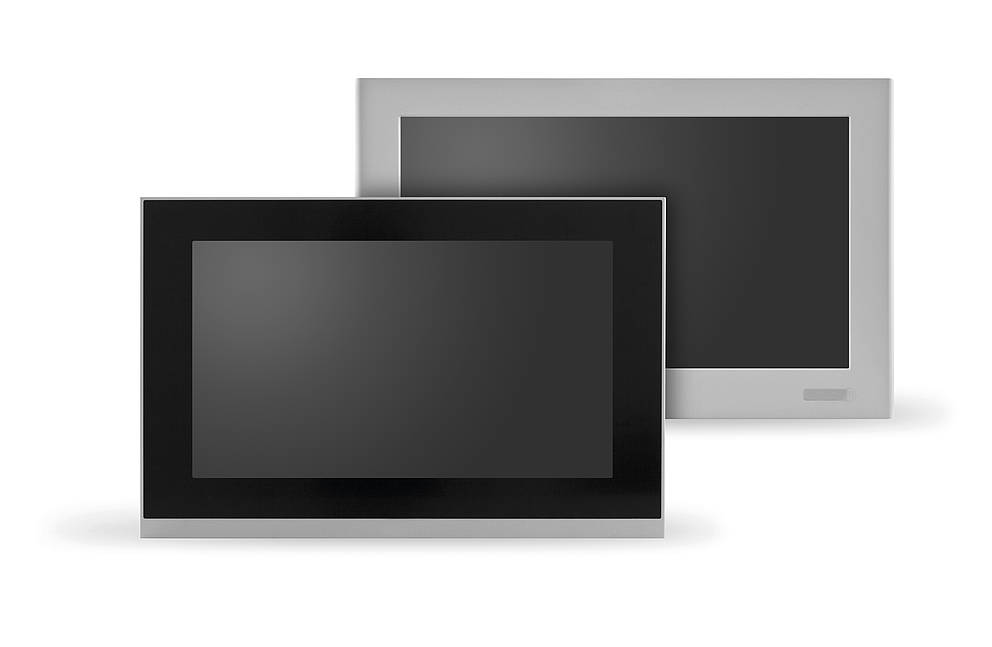

All of KEB’s Panel IPCs are available in a wide range of display formats and sizes, and users can select either resistive or capacitive touch technology.

C6 E22 Panel (extract from catalogue) (2 MB)





Properties

  • Fanless IPC panel up to 50°C operating temperature
  • Intel® Bay Trail platform with 64 bit architecture - Celeron® J1900 2Ghz (2,41 GHz burst frequency), 4 cores, 4 threads
  • Wide range of 16M colours LED Backlight TFT LCD displays with resistive or capacitive touch technology
    - Standard format: 10.4”, 12.1”, 15”, 17”, 19”
    - Widescreen format: 10.1”, 12.1”, 15.6”, 18.5”, 21.5”, 24”
  • Slim version (SL) for installation situations with limited space
  • Two operating systems according to application
  • Smart memory concept for maximum flexibility in use

C6 P34 Panel

Most powerful IPC panel

The C6 P34 IPC panel from KEB uses the Intel® Ivy Bridge platform along with the 6th generation Core i5 processors. It’s the most powerful panel IPC in our current line of automation products, with an impressive maximum computing capacity for motion control.

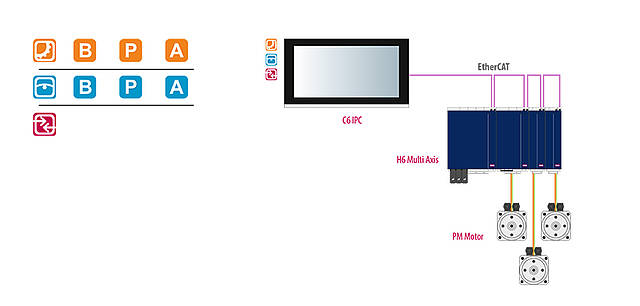

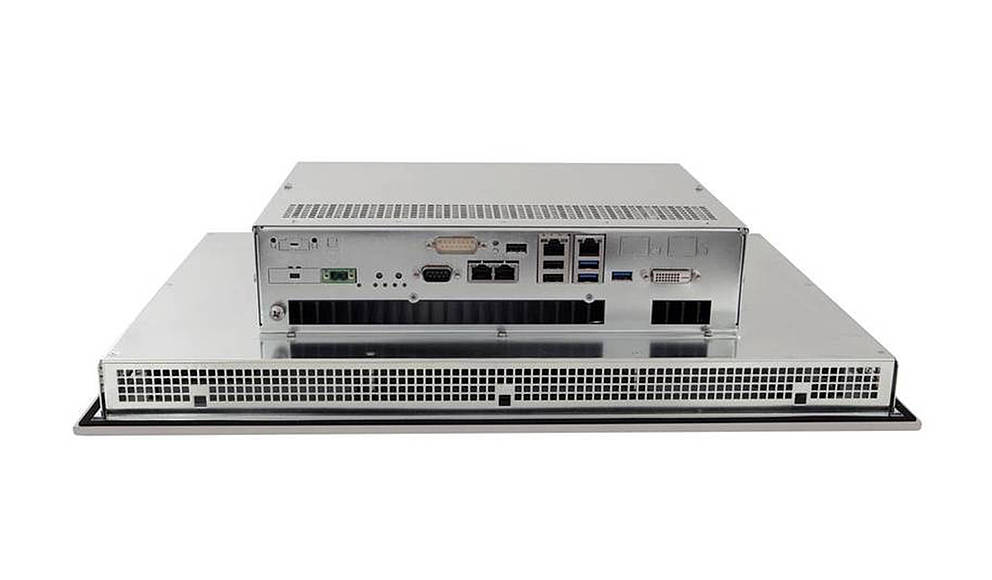

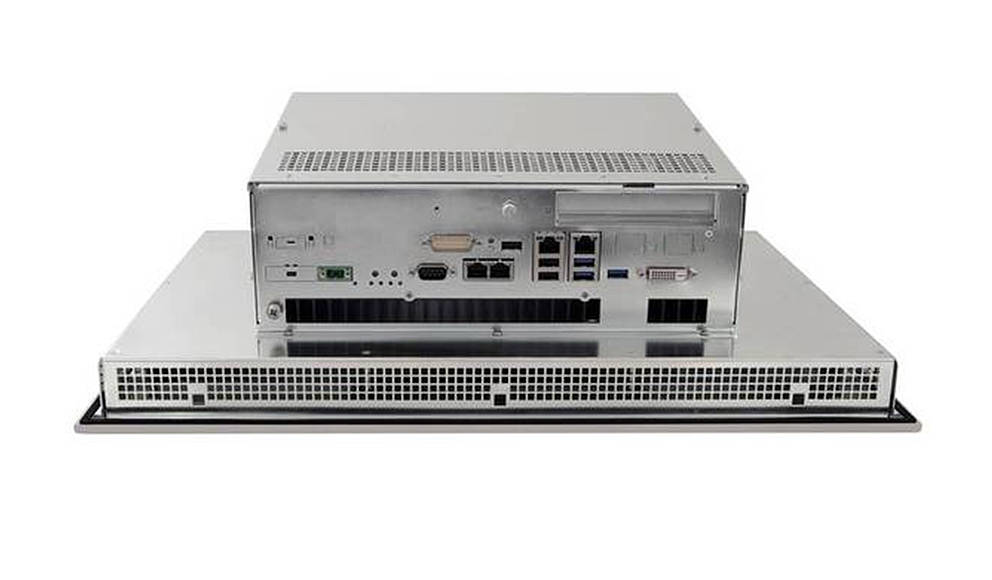

The all-in-one motherboard includes Ethernet, serial RS232, and USB interfaces, as well as an EtherCAT master. Additional optional fieldbus interfaces enable connection to higher ranking controls and can be configured based on installation space and location.

All of KEB’s Panel IPCs are available in a wide range of display formats and sizes, and users can select either resistive or capacitive touch technology.

C6 P34 Panel (extract from catalogue) (2 MB)





Properties

  • Fanless IPC panel with high-performance processor up to 50°C operating temperature
  • Intel® Bay Trail platform with 64 bit architecture - Celeron® J1900 2Ghz (2,41 GHz burst frequency), 4 cores, 4 threads
  • Displays with resistive or capacitive touch technology
    - Standard format: 12.1”, 15”, 17”, 19”
    - Widescreen format: 12.1”, 15,6”, 18,5”, 21,5”, 24”
  • Smart memory concept for maximum flexibility in use
