High-value visualization systems
KEB's powerful and cost-effective visualization systems are well-equipped to handle both simple and complex applications.
The large number of communication drivers and interfaces ensures an open, communicative, flexible HMI solution for a wide range of controls and drives.
In addition, C6 HMI panels offer intelligent memory management with lots of internal memory for storing application-specific data.
Requirements for remote maintenance solutions will become more demanding as technology advances. To prepare for the future needs of our users KEB offers software-based remote maintenance incorporated as standard in all C6 HMI and C6 HMI LC.
You can find more information on KEB remote maintenance under the Remote Control Solutions link in right sidebar.
C6 HMI
KEB C6 HMI Operating panel

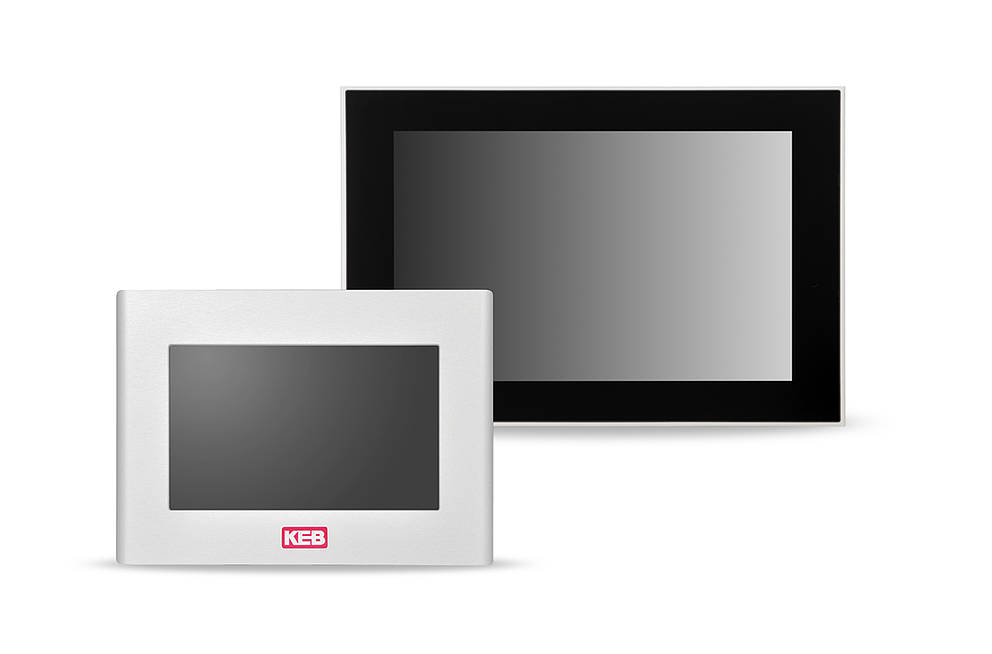

KEB C6 HMI panels contain a wide range of functions made possible by our COMBIVIS HMI Studio visualization software. COMBIVIS is available in basic or advanced versions, depending on the application.
Every panel has an aluminum frame with an IP66 protection rating. The top-of-the-line touch screens have brilliant displays with 16 million colors. A range of display formats are available.
For added value each unit comes with remote maintenance functionality built in as standard.
C6 HMI (extract from catalogue) (2MB)
Properties
- Cost-effective display system
- Multiple communication interfaces and drivers for a wide range of controls and drives
- Integrated remote maintenance
- Intelligent memory management with a large internal memory capacity
C6 HMI-LC

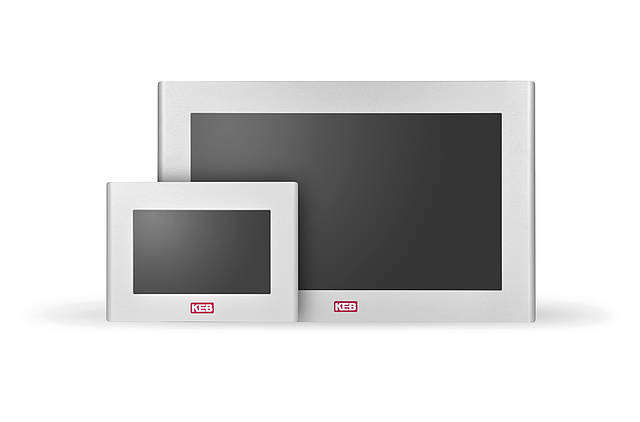

KEB C6 HMI-LC Operating panel
The C6 HMI LC is an ARM-based panel PAC (Programmable Automation Controller) system, combining visualization, control and remote maintenance in a single unit. An integrated micro-UPS enables non-volatile data to be securely saved in the event of power failure.
The logic controller can handle a range of SPS and HMI functions depending on the version of runtime used by the application.
Every panel has an aluminum frame with an IP66 protection rating. The top-of-the-line touch screens have brilliant displays with 16 million colors. A range of display formats are available.
C6 HMI LC (extract from catalogue) (2 MB)
Properties
- All in One automation solution
- Control with EtherCAT Master
- High-value display
- Micro USP for saving non-volatile data
- Software tool for saving, reinstating or transferring systems
C6 S14
Multi-talent with embedded technology

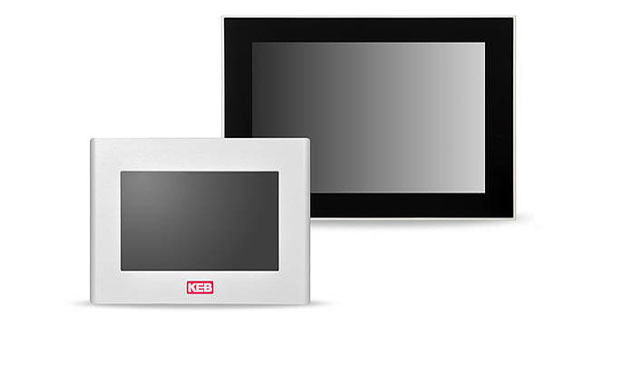

The C6 S14 product family uniquely combines visualization, control and remote maintenance functions, the scope of which depends on the runtime version used. This logic panel is already a true all-rounder and builds the bridge between embedded and IPC technology.
In addition to the resistive and capacitive touch technology as well as a wide range of different display formats with 16 million colors, the C6 S14 impresses with its integrated μUSV, which enables the storage of remanent data in the event of a power failure.

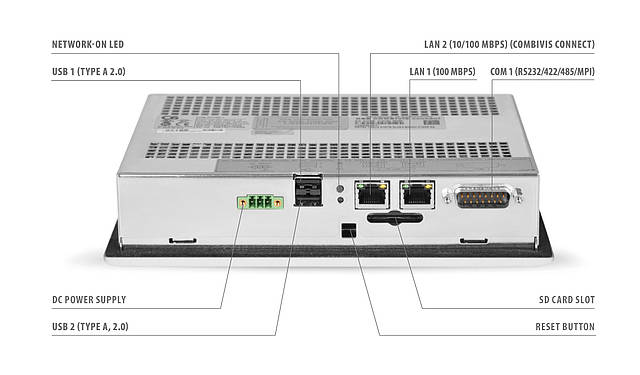

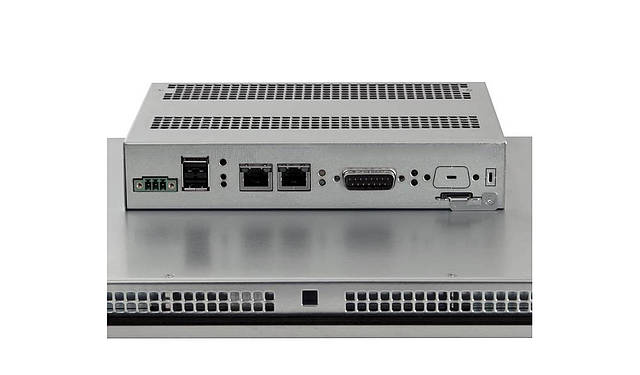

The all-in-one motherboard contains two Ethernet interfaces, a configurable RS232 / 422/485 interface with MPI support, two USB interfaces and can optionally be supplied with isolated CAN interface.
C6 S14 (extract from catalogue) (2 MB)
Properties
- All in One automation solution
- Synchronous realtime control with EtherCAT Master
- Micro UPS for secure of non volatile memory
- Optimised processor power for synchronous motion control, rapid switching and detection of signals
- Smart system with integrated real-time controller, visualisation and remote monitoring supplemented by a wide range of interfaces (USB, Ethernet, EtherCAT®, CANopen, RS232/485)
